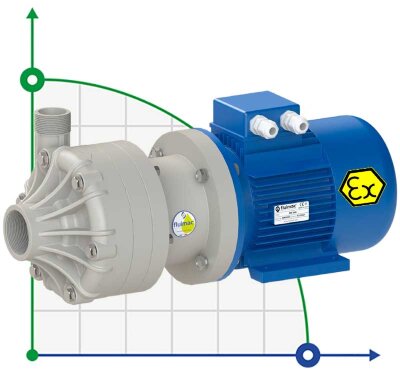

Horizontal centrifugal pump with mechanical seals DR 025 PVDF, 2.2 kW

DRAGON PLASTIC horizontal centrifugal pumps are high-performance pumps that are driven by a direct-drive electric motor for rapid pumping and drainage of liquids at a flow rate of 6 to 40 m3 / h. The special semi-open design of the impeller allows you to continuously pump even dirty liquids with a relative viscosity of up to 500 cps. and small suspended solids. DRAGON centrifugal pumps have a strong pump housing and a lamp for connecting the motor and checking the mechanical seal. The semi-open impeller is mounted on the pump shaft, which is integral with the drive shaft of the motor. The mechanical seal is located on the back part of impeller. THE MAIN CHARACTERISTICS The housing and impeller are made of polypropylene and PVDF O-ring with EPDM and VITON with one mechanicals eal The maximal head of delivery is 25 mm. The maximal consumption: 40 m3/h Temperature: from -20 ° C to + 95°C The maximal viscosity: 500 CPS Electric motors from 0.37 kW to 5.5 kW Specific weight up to 1,37
