Chemical plastic pump FLUIMAC DRAGON 30 PP, 3 kW, 380V

Code: DR030PDT11MIE-3h
(0 review)
ProducerFLUIMAC
MaterialPP
Max. head, m20
PumpTypeconsole
Output pipe diameterG1 1/2
Input pipe diameterG2
Max.flow rate, m3/h30
Explosion protectionNo
Pump capacity, m3/h30
Availability of spare partsYes
Serial number of the pumpDRAGON
Drive Typeelectric
Feed height, m20
Max.viscosity, cPs500
ModelDR 030
Country of OriginItaly
Warranty, months12
Power capacity, kW3
Power supply3х380 V, 50 Hz
Operating temperature-5°C + 65°C
Housing materialPP
SealMechanical Seal, SiC/C/FPM/SS304 (PTFE bellows)
Material of O-ringEPDM
Type of configurationwith engine
Installation Typehorizontal
Impeller materialPP
Show all features (26)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$3,878.84 (netto)
Добавить в сравнение
We deliver anywhere in the world
DRAGON series chemical centrifugal plastic pumps from the Italian company FLUIMAC are high-performance pumps driven by a direct-drive electric motor for fast pumping and draining of liquids with a flow rate of 6 to 40 m3/h. The special semi-open impeller design allows continuous pumping of even dirty liquids with a relative viscosity of up to 500 cps. and small suspended solids. DRAGON centrifugal pumps have a robust pump housing and an inspection hole for connecting the electric motor and checking the mechanical seal. The semi-open impeller is mounted on the pump shaft, which is connected to the drive shaft of the electric motor. The mechanical shaft seal is located at the rear of the impeller. The DRAGON mechanical seal is designed with a bellows made of 100% pure PTFE for extremely corrosion-resistant applications. The entire seal assembly and its components are mechanically driven to prevent slippage on the shaft or sleeve. The seal assembly is mounted externally and is under internal pressure. DRAGON centrifugal pumps should only be installed with the shaft horizontal and with positive suction head. Appropriate devices must be installed to prevent dry running, eddies and possible air entrainment. Dry running or operation with air bubbles can damage the mechanical seal.
ProducerFLUIMAC
MaterialPP
Max. head, m20
PumpTypeconsole
Output pipe diameterG1 1/2
Input pipe diameterG2
Max.flow rate, m3/h30
Explosion protectionNo
Pump capacity, m3/h30
Availability of spare partsYes
Serial number of the pumpDRAGON
Drive Typeelectric
Feed height, m20
Max.viscosity, cPs500
ModelDR 030
Country of OriginItaly
Warranty, months12
Power capacity, kW3
Power supply3х380 V, 50 Hz
Operating temperature-5°C + 65°C
Housing materialPP
SealMechanical Seal, SiC/C/FPM/SS304 (PTFE bellows)
Material of O-ringEPDM
Type of configurationwith engine
Installation Typehorizontal
Impeller materialPP
Loading...
Products from the same category
Chemical plastic pump FLUIMAC DRAGON 25 PVDF, 2.2 kW, 380V, Ex
DR025KVT11MIE-3h-Ex
Producer
FLUIMAC
Material
PVDF
Preorder
0
$5,289.33
Chemical plastic pump FLUIMAC DRAGON 25 PVDF, 3 kW, 380V
DR025KVT11HIE-3h
Producer
FLUIMAC
Material
PVDF
Preorder
0
$5,223.73
Chemical plastic pump FLUIMAC DRAGON 25 PVDF, 3 kW, 380V, Ex
DR025KVT11HIE-3h-Ex
Producer
FLUIMAC
Material
PVDF
Preorder
0
$5,961.77
Chemical plastic pump FLUIMAC DRAGON 30 PP, 2.2 kW, 380V
DR030PDT11LIE-3h
Producer
FLUIMAC
Material
PP
Preorder
0
$3,444.24
Chemical plastic pump FLUIMAC DRAGON 30 PP, 2.2 kW, 380V, Ex
DR030PDT11LIE-3h-Ex
Producer
FLUIMAC
Material
PP
Preorder
0
$3,944.46
Chemical plastic pump FLUIMAC DRAGON 30 PP, 3 kW, 380V, Ex
DR030PDT11MIE-3h-Ex
Producer
FLUIMAC
Material
PP
Preorder
0
$4,616.88
Chemical plastic pump FLUIMAC DRAGON 30 PP, 4 kW, 380V
DR030PDT11HIE-3h
Producer
FLUIMAC
Material
PP
Preorder
0
$4,346.28
Chemical plastic pump FLUIMAC DRAGON 30 PP, 4 kW, 380V, Ex
DR030PDT11HIE-3h-Ex
Producer
FLUIMAC
Material
PP
Preorder
0
$5,289.33
Chemical plastic pump FLUIMAC DRAGON 30 PVDF, 2.2 kW, 380V
DR030KVT11LIE-3h
Producer
FLUIMAC
Material
PVDF
Preorder
0
$4,953.13

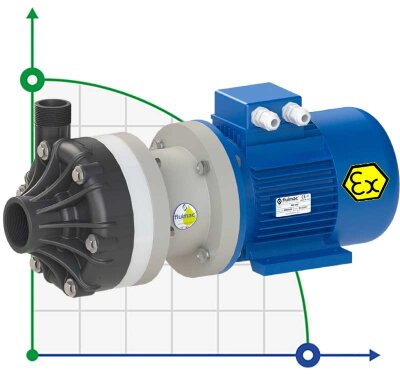

Chemical plastic pump FLUIMAC DRAGON 30 PVDF, 2.2 kW, 380V, Ex
