Producer | FLUIMAC |
Material | PP |
Max. head, m | 80 |
PumpType | membrane pneumatic |
Output pipe diameter | 1" 1/2 |
Diaphragm material at air side | HYTREL |
Input pipe diameter | 1" 1/2 |
Material of flow channel | PP |
Material of valve seat | PP |
Max.temperature, C | 65 |
Max.air pressure, bar | 8 |
Weight, kg | 18,2 |
Flow rate, l/min | 380 |
Max.diameter of solid inclusions, mm | 8 |
Max.flow rate, m3/h | 22.8 |
Explosion protection | Yes |
Diametr of the product line | 1" 1/2 |
Diameter of the pneumatic mainline | 1/2" |
Dry suction height, m | 5 |
Suction capacity (NPSH), m | 9,8 |
Noise level ,dB | 78 |
Pump capacity, cu.m/hour | 22.8 |
Availability of spare parts | yes |
Serial number of the pump | PHOENIX |
Drive Type | pneumatic |
Feed height, m | 80 |
Diaphragm material at water side | PTFE |
Material of ball valves | PTFE |
Max.viscosity, cPs | 40 000 |
Model | PHOENIX 400 |
Country of Origin | Italy |
Warranty, months | 12 |
Temperature (min), °C | -4 |
Application | ethers, ethylene, alkalis, slip, slag, phosphoric acid, phosphates, formalin, acetic acid, phenol, alcohol, reverse osmosis systems, urea, sulfur, peroxide, oleum, saturated amine, varnish, paints, carbonate, kaolin suspension, ash, clays, viscous liquids, hydrogen, butane, ammonia, nitric acid |
Analogue for | AGRAL DDE-030, AGRAL DDE-100, DELLMECO DM, DELLMECO DMCX, DEPA DB, DEPA L, Debem SANIBOXER, AquaViva, DUOTEK FOOD, AGRAL DDE-600, AlphaDynamic Ruby, AQUA, Astralpool, Debem BOXER, Debem Foodboxer, Duotek AF Zone 2 Atex, PRODOSE, YAMADA NDP, WILDEN, Sera, Seko, ProMinent, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky , FWT, Emec, DEPA M, DOSITEC, DEPA РМ (Р), DUOTEK SANI, AGRAL DDE-60, AGRAL DDE-160, AGRAL DDE-300 |
Producer | FLUIMAC |
Material | PP |
Max. head, m | 80 |
PumpType | membrane pneumatic |
Output pipe diameter | 1" 1/2 |
Diaphragm material at air side | HYTREL |
Input pipe diameter | 1" 1/2 |
Material of flow channel | PP |
Material of valve seat | PP |
Max.temperature, C | 65 |
Max.air pressure, bar | 8 |
Weight, kg | 18,2 |
Flow rate, l/min | 380 |
Max.diameter of solid inclusions, mm | 8 |
Max.flow rate, m3/h | 22.8 |
Explosion protection | Yes |
Diametr of the product line | 1" 1/2 |
Diameter of the pneumatic mainline | 1/2" |
Dry suction height, m | 5 |
Suction capacity (NPSH), m | 9,8 |
Noise level ,dB | 78 |
Pump capacity, cu.m/hour | 22.8 |
Availability of spare parts | yes |
Serial number of the pump | PHOENIX |
Drive Type | pneumatic |
Feed height, m | 80 |
Diaphragm material at water side | PTFE |
Material of ball valves | PTFE |
Max.viscosity, cPs | 40 000 |
Model | PHOENIX 400 |
Country of Origin | Italy |
Warranty, months | 12 |
Temperature (min), °C | -4 |
Application | ethers, ethylene, alkalis, slip, slag, phosphoric acid, phosphates, formalin, acetic acid, phenol, alcohol, reverse osmosis systems, urea, sulfur, peroxide, oleum, saturated amine, varnish, paints, carbonate, kaolin suspension, ash, clays, viscous liquids, hydrogen, butane, ammonia, nitric acid |
Analogue for | AGRAL DDE-030, AGRAL DDE-100, DELLMECO DM, DELLMECO DMCX, DEPA DB, DEPA L, Debem SANIBOXER, AquaViva, DUOTEK FOOD, AGRAL DDE-600, AlphaDynamic Ruby, AQUA, Astralpool, Debem BOXER, Debem Foodboxer, Duotek AF Zone 2 Atex, PRODOSE, YAMADA NDP, WILDEN, Sera, Seko, ProMinent, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky , FWT, Emec, DEPA M, DOSITEC, DEPA РМ (Р), DUOTEK SANI, AGRAL DDE-60, AGRAL DDE-160, AGRAL DDE-300 |

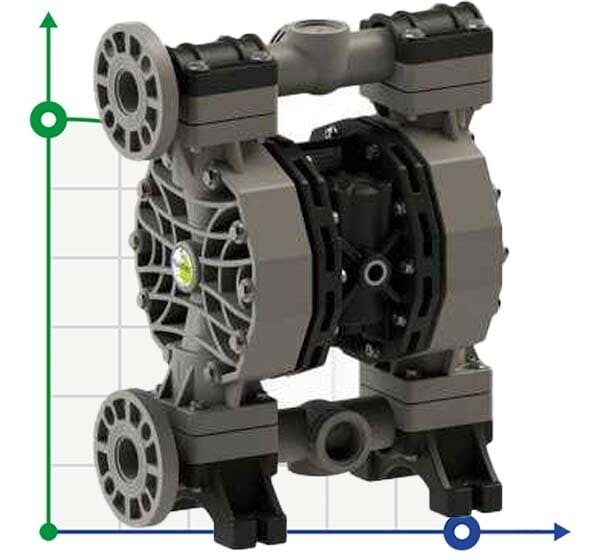

Download instructions, catalog for PHOENIX P400 PP HYTREL+PTFE pneumatic diaphragm pump for hydrofluoric acid, 380 l/min
