Pneumatic Membrane Pump PHOENIX P700 PVDF ATEX

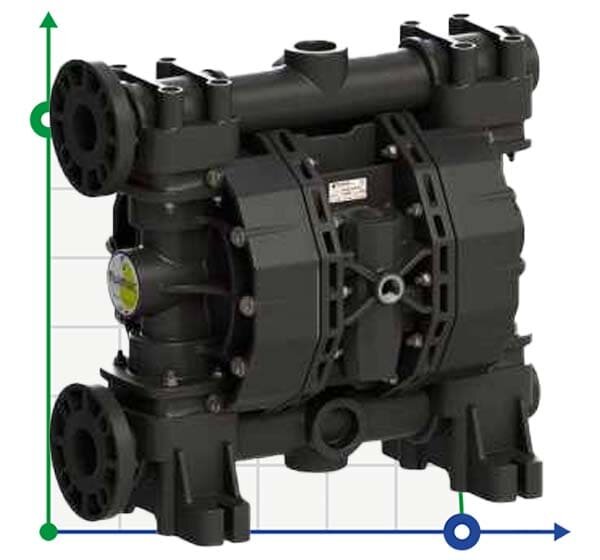

Pneumatic Membrane Pump PHOENIX P700 PVDF ATEX

Click image for a larger view

Code: P0700KC-MTTKV1XAB

Producer	FLUIMAC
Material	PVDF
Max. head, m	80
PumpType	membrane pneumatic
Output pipe diameter	2"
Diaphragm material at air side	SANTOPRENE+PTFE
Input pipe diameter	2"
Material of flow channel	PVDF
Material of valve seat	PVDF
Max.temperature, C	95
Max.air pressure, bar	8
Weight, kg	36
Flow rate, l/min	700
Max.diameter of solid inclusions, mm	8,5
Max.flow rate, m3/h	42
Explosion protection	Yes
Diametr of the product line	2"
Diameter of the pneumatic mainline	3/4"
Dry suction height, m	5
Suction capacity (NPSH), m	9,8
Noise level ,dB	78
Pump capacity, m3/h	42
Availability of spare parts	Yes
Serial number of the pump	PHOENIX ATEX
Drive Type	pneumatic
Feed height, m	80
Diaphragm material at water side	PTFE
Material of ball valves	PTFE
Max.viscosity, cPs	50 000
Model	PHOENIX ATEX 700
Country of Origin	Italy
Warranty, months	12
Analogue for	AGRAL DDE-030, AGRAL DDE-100, DELLMECO DM, DELLMECO DMCX, DEPA DB, DEPA L, Debem SANIBOXER, AquaViva, DUOTEK FOOD, AGRAL DDE-600, AlphaDynamic Ruby, AQUA, Astralpool, Debem BOXER, Debem Foodboxer, Duotek AF Zone 2 Atex, PRODOSE, YAMADA NDP, WILDEN, Sera, Seko, ProMinent, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky , FWT, Emec, DEPA M, DOSITEC, DEPA РМ (Р), DUOTEK SANI, AGRAL DDE-60, AGRAL DDE-160, AGRAL DDE-300

Show all features (34)

Documentation

Description Pneumatic Membrane Pump PHOENIX P700 PVDF ATEX

The batch line of pneumatic membrane pumps PHOENIX of Italian brand FLUIMAC is presented by the broad range of models for solution of any degree of complexity industrial tasks. Membrane pumps PHOENIX with innovative air separation system, geometry of pump chambers and valve system, allows to pump over a wide range of aggressive products (concentrated acids, alkalis, solvents, laquers, glues, liquids with suspended particles to 10 mm, abrasive products, etc.) with viscosity from 6000 to 55000 cPs. Wet part of membrane pumps PHOENIX is made of such material as PVDF, Alu, POMc, PP, AISI316. The main working bodies (membranes, ball valves, ball seats) are made of PVDF, Alu, POMc, PP, AISI316, PTFE, NBR, PE, SANTOPRENE, HYTREL. The advantages of pneumatic membrane pumps FLUIMAC: - Dry self-suction to 6 m; - Self-suction with flooded suction to 9,8 m; - Unrestrained dry running.

Features Pneumatic Membrane Pump PHOENIX P700 PVDF ATEX

Producer	FLUIMAC
Material	PVDF
Max. head, m	80
PumpType	membrane pneumatic
Output pipe diameter	2"
Diaphragm material at air side	SANTOPRENE+PTFE
Input pipe diameter	2"
Material of flow channel	PVDF
Material of valve seat	PVDF
Max.temperature, C	95
Max.air pressure, bar	8
Weight, kg	36
Flow rate, l/min	700
Max.diameter of solid inclusions, mm	8,5
Max.flow rate, m3/h	42
Explosion protection	Yes
Diametr of the product line	2"
Diameter of the pneumatic mainline	3/4"
Dry suction height, m	5
Suction capacity (NPSH), m	9,8
Noise level ,dB	78
Pump capacity, m3/h	42
Availability of spare parts	Yes
Serial number of the pump	PHOENIX ATEX
Drive Type	pneumatic
Feed height, m	80
Diaphragm material at water side	PTFE
Material of ball valves	PTFE
Max.viscosity, cPs	50 000
Model	PHOENIX ATEX 700
Country of Origin	Italy
Warranty, months	12
