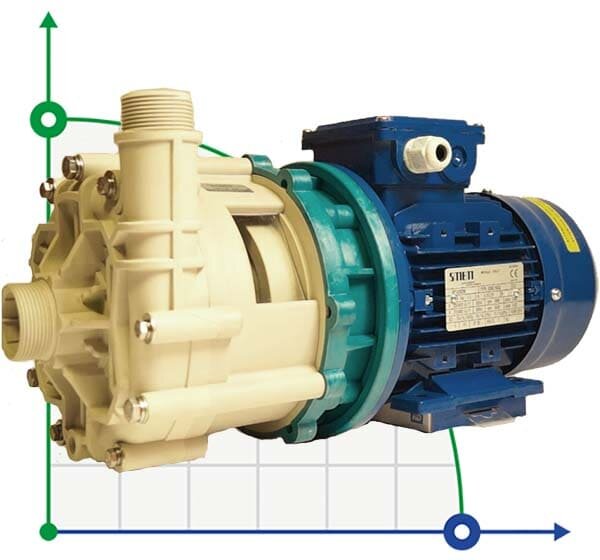

Centrifugal pump FMZ10.10 P WR V TS6 B EN3 KW1,1

Product list

Home
FLUIMAC pumps and equipment
Centrifugal pump FMZ10.10 P WR V TS6 B EN3 KW1,1

Centrifugal pump FMZ10.10 P WR V TS6 B EN3 KW1,1

Click image for a larger view

Code: FMZ10.10PWRVTS6B

(0 review)

Producer	FLUIMAC
Material	PP
Max. head, m	16
PumpType	console
Output pipe diameter	1 1/4"
Input pipe diameter	1 1/2"
Material of flow channel	PP
Max.flow rate, m3/h	18
Pump capacity, m3/h	18
Availability of spare parts	Yes
Drive Type	electric
Feed height, m	16
Country of Origin	Italy
Warranty, months	12
Power capacity, kW	1,1
Power supply	3х380 V, 50 Hz
Seal	Mechanical Seal, TS6 Al203/SiC/el
Installation Type	horizontal

Show all features (18)

Description Centrifugal pump FMZ10.10 P WR V TS6 B EN3 KW1,1

Centrifugal pump FMZ 10.10 with mechanical seal TS6 Al203 / SiC / el, pump part made of polypropylene, cuff seal Viton (polymer), threaded connection BSP, three-phase motor IE2 F standard 1, 1 kW 400V 50 Hz, threaded connection 1 inlet / 4, threaded connection of the suction pipe 1 "1/2.

Category: FLUIMAC pumps and equipment

Features Centrifugal pump FMZ10.10 P WR V TS6 B EN3 KW1,1

Producer	FLUIMAC
Material	PP
Max. head, m	16
PumpType	console
Output pipe diameter	1 1/4"
Input pipe diameter	1 1/2"
Material of flow channel	PP
Max.flow rate, m3/h	18
Pump capacity, m3/h	18
Availability of spare parts	Yes
Drive Type	electric
Feed height, m	16
Country of Origin	Italy
Warranty, months	12
Power capacity, kW	1,1
Power supply	3х380 V, 50 Hz
Seal	Mechanical Seal, TS6 Al203/SiC/el
Installation Type	horizontal

Video Centrifugal pump FMZ10.10 P WR V TS6 B EN3 KW1,1

Centrifugal pump FMZ10.10 P WR V TS6 B EN3 KW1,1 Reviews (0)
