FLUIMAC PHOENIX P18 pump housing. Material: POM+CF. ITEM NUMBER: P0018CP005088OC. Position on the parsing scheme: 11.

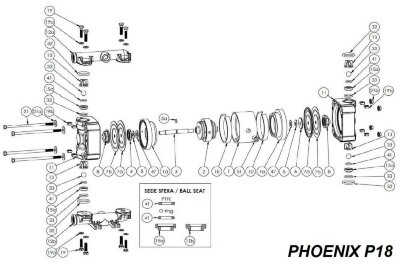

General scheme of disassembly of the PHOENIX P18 pump:
1 Central unit
1a Cover/plate of the central unit
2 Pneumatic heat exchanger
3 Shaft
3a Shaft sealing ring
5 Disc spring
6 Air side cover
7a Air side membrane
7b Membrane on the liquid side
8 Plug
10 Silencer
11 Pump housing
12a Upper collector
12a Upper collector clamp
12b Lower collector
12b Lower collector clamp
13 Guide ball clip
14 Ball
15a Ball seat
15b Ball seat
19 Screw collector
19a Collector washers
19b Spanner manifold
21 Screw casing
21a Washer housing / collector
21b Nuts for housing
32 Upper O-ring
32 Upper gasket
33 Lower O-ring
33 Lower gasket
41 Inner seat O-ring
41 Inner seat gasket
47 Spacer
51 Pneumatic highway
21b Nuts for housing
32 Upper O-ring
34 Muffler O-ring
47 Spacer
51 Pneumatic highway
