Screw casing of the FLUIMAC PHOENIX P30 pump. Material: AISI. ITEM NUMBER: VITEM10C06140A2. Position on the parsing scheme: 21.

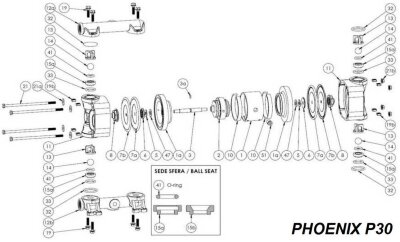

General scheme of disassembly of the PHOENIX P30 pump:
1 Central unit
1a Cover/plate of the central unit
2 Pneumatic heat exchanger
3 Shaft
3a Shaft sealing ring
5 Disc spring
6 Air side cover
7a Air side membrane
7b Membrane on the liquid side
8 Plug
10 Silencer
11 Pump housing
12a Upper collector
12a Upper collector clamp
12b Lower collector
12b Lower collector clamp
13 Guide ball clip
14 Ball
16 Ball
15a Ball seat with O-ring N°41
15b Ball seat
19 Screw collector
19b Spanner manifold
21 Screw casing
21a Washer housing / collector
21b Nuts for housing
32 Upper O-ring
32 Upper gasket
33 Lower O-ring
33 Lower gasket
41 Inner O-ring
47 Stroke gasket
51 Pneumatic highway
