The central unit of the FLUIMAC PHOENIX P400 pump. Material: PP+CF. ITEM NUMBER: P0400CCR00058PC. Position on the parsing scheme: 1.

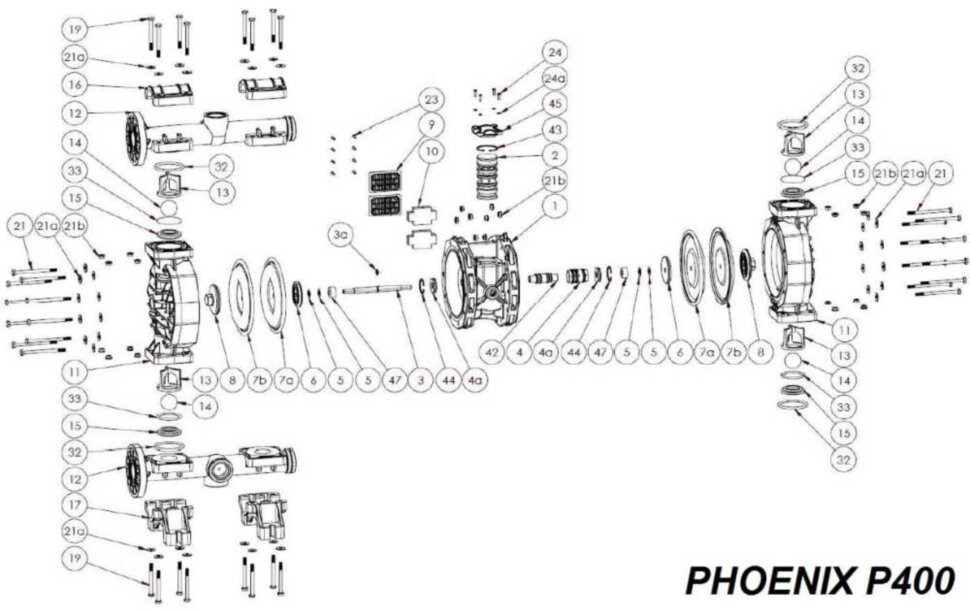

General scheme of disassembly of the PHOENIX P400 pump:
1 Central unit
2 Pneumatic heat exchanger
3 Shaft
3a O-ring
4 Intermediate plate with O-ring
4a Intermediate plate with O-ring
5 Disc ring gasket
6 Air side cover
7a Air side membrane
7b Membrane on the liquid side
8 Plug
9 muffler grille
10 Silencer
11 Pump housing
12 Upper/lower collector 1" 1/2
13 Guide ball clip
14 Ball
15 Ball
16 Ball
15 Ball seat
16 Collar
17 Stand
19 Screw collector
21 Screw casing
21a Washer housing / collector
21b Nuts for casing / manifold
23 Silencer screw grille
24 Screw of the cover of the pneumatic exchanger
24a Screw of the cover of the pneumatic exchanger
32 Upper O-ring
33 Lower O-ring
42 Sleeve with O-ring
43 Locking ring for pneumatic exchanger
44 Locking ring of the central unit
45 Cover of the pneumatic exchanger
47 Stroke gasket
