Screw collector of the FLUIMAC PHOENIX P50 pump. Material: AISI. ITEM NUMBER: VITEM10C06045A2. Position on the parsing scheme: 19.

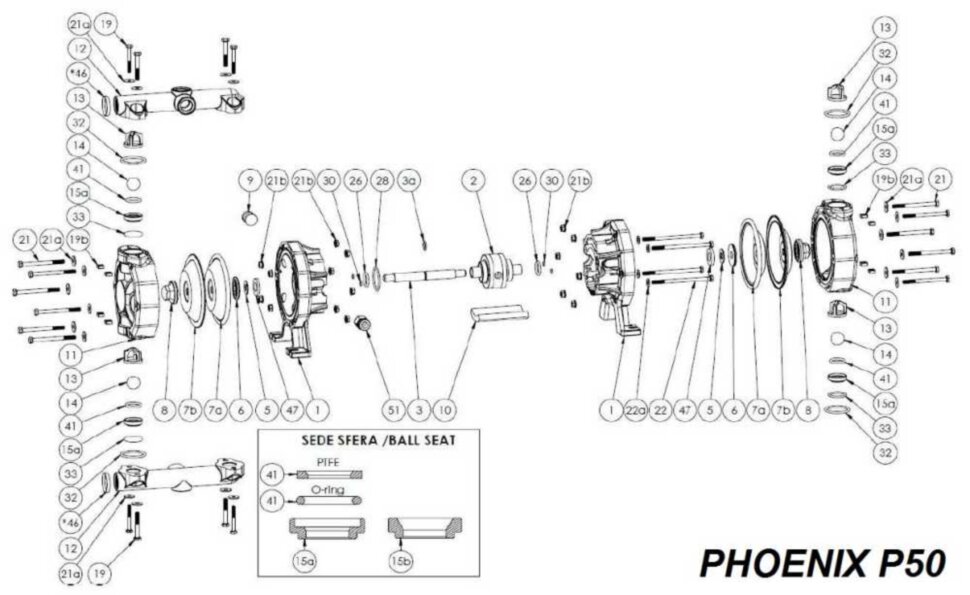

General scheme of disassembly of the PHOENIX P50 pump:
1 Central semi-block
2 Pneumatic heat exchanger
3 Shaft
3a Shaft sealing ring
5 Disc spring
6 Air side cover
7a Air side membrane
7b Membrane on the liquid side
8 Plug
9 Plug of the central semi-block
10 Silencer
11 Pump housing
12 Upper/lower collector
13 Guide ball clip
14 Ball
15a Ball seat with O-ring or gasket N°41
15b Ball seat
19 Screw collector
19b Spanner manifold
21 Screw casing
21a Ring gasket
21b Nut
22 Screw central semi-block
22a Ring gasket of the central semi-block
26 O-ring
28 O-ring
30 O-ring
32 Upper O-ring
32 Upper gasket
33 Lower O-ring
33 Lower gasket
41 Inner O-ring
*46 Reinforcing ring collector
47 Stroke gasket
51 Air connection with O-ring
