Screw intermediate plate for FLUIMAC PHOENIX P700 pump Material: AISI. ITEM NUMBER: VITEA18C04018A2. Position on the parsing diagram: 22.

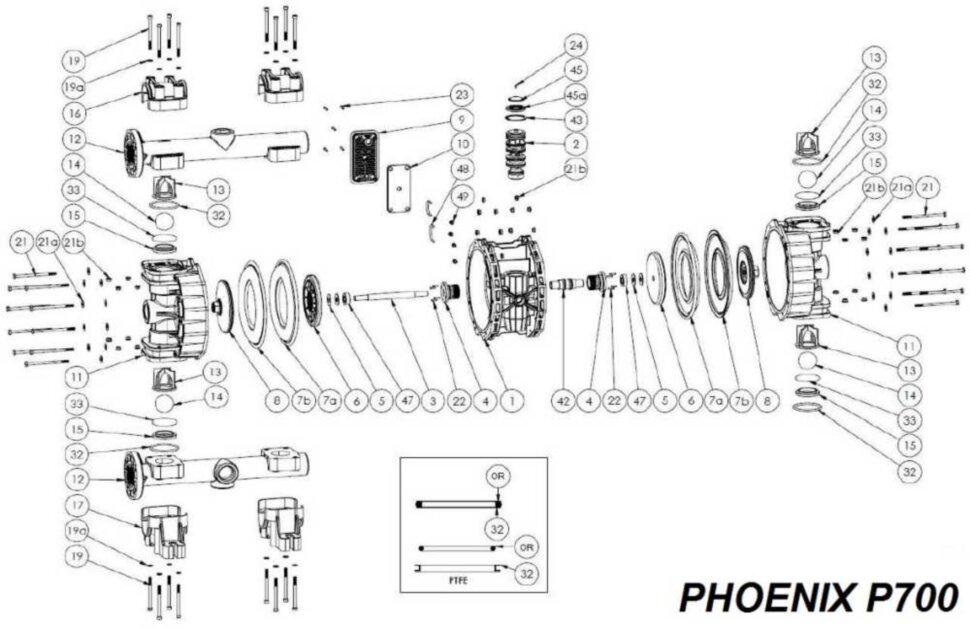

General scheme of disassembly of the PHOENIX P700 pump:
1 Central unit
2 Pneumatic heat exchanger
3 Shaft
4 Intermediate plate with O-ring
5 Disc spring
6 Air side cover
7a Air side membrane
7b Membrane on the liquid side
8 Plug
9 muffler grille
10 Silencer
11 Pump housing
12 Upper/lower collector
13 Guide ball clip
14 Ball
15 Ball seat
16 Collar
17 Stand
19 Screw collector
19a Ring gasket
21 Screw casing
21a Ring gasket
21b Nut
22 Screw intermediate plate
23 Silencer screw grille
24 Screw of the cover of the pneumatic exchanger
32 Upper O-ring
33 Lower O-ring
42 Sleeve with O-ring
43 Locking ring for pneumatic exchanger
45 Cover of the pneumatic exchanger
45a adapter of the pneumatic exchanger cover
47 Spacer travel diaphragm
48 Air tube D 6 mm
49 Fitting sleeve
