Type of configuration | with engine |
Producer | FLUIMAC |
Pump capacity, cu.m/hour | 3.5 |
Feed height, m | 7.5 |
Material | PP |
Serial number of the pump | COMPASS |
Country of Origin | Italy |
Input pipe diameter | 1" |
Output pipe diameter | 1/2" |
Power capacity, kW | 0,12 |
Rate of turn, rpm | 2 900 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
PumpType | with magnetic coupling |
Drive Type | electric |
Installation Type | horizontal |
Max.flow rate, m3/h | 3.5 |
Max. head, m | 7.5 |
Flow rate, l/min | 58.3 |
Housing material | PP |
Material of O-ring | EPDM |
Operating temperature | -5°C + 65°C |
Availability of spare parts | yes |
Warranty, months | 12 |
Type of configuration | with engine |
Producer | FLUIMAC |
Pump capacity, cu.m/hour | 3.5 |
Feed height, m | 7.5 |
Material | PP |
Serial number of the pump | COMPASS |
Country of Origin | Italy |
Input pipe diameter | 1" |
Output pipe diameter | 1/2" |
Power capacity, kW | 0,12 |
Rate of turn, rpm | 2 900 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
PumpType | with magnetic coupling |
Drive Type | electric |
Installation Type | horizontal |
Max.flow rate, m3/h | 3.5 |
Max. head, m | 7.5 |
Flow rate, l/min | 58.3 |
Housing material | PP |
Material of O-ring | EPDM |
Operating temperature | -5°C + 65°C |
Availability of spare parts | yes |
Warranty, months | 12 |

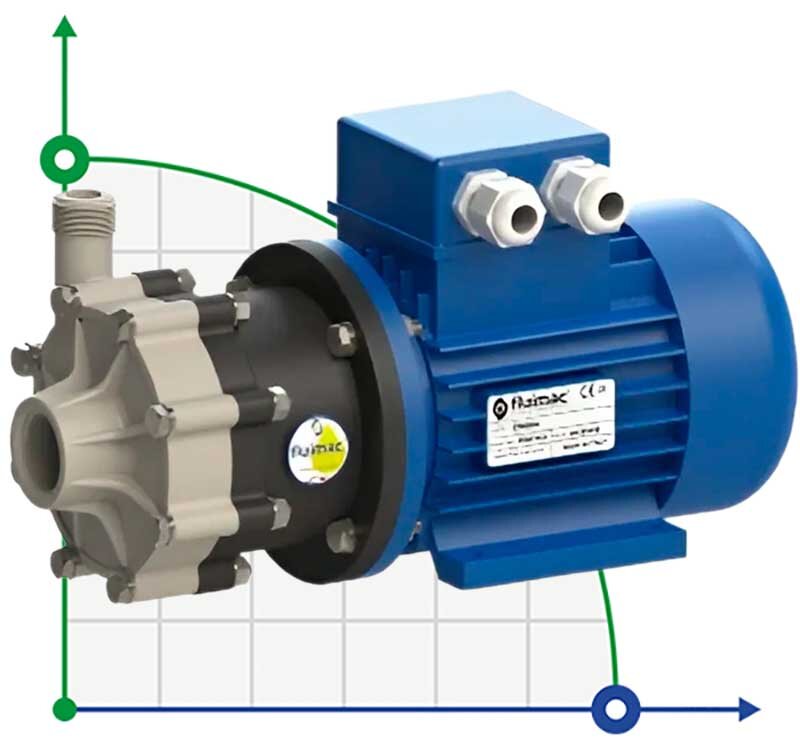

Download instructions, catalog for Chemical pump with magnetic coupling FLUIMAC COMPASS CM 4 PP, 0.12 kW, 380V
